The Most Reliable Spiral Wound Gaskets Manufacturer, Supplier and Exporter from Delhi, India

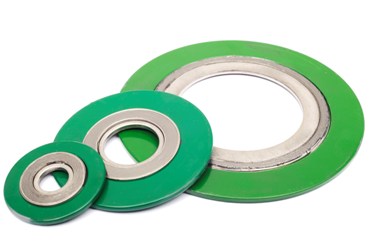

The Spiral Wound Gaskets are mechanical seals manufactured to fill the space in "less-than-perfect" mating surfaces on the machine parts they are used on, where they can fill irregularities, preventing leakage into and from the joined parts while under compression.

The said gasket has the ability to recover under varying loads from high operating pressures and critical applications. It can withstand high temperature and pressure limits. Spiral wounds are comprised of a mix of soft gasket filler materials(such as graphite or Teflon), and by a specially formed metal (normally carbon-rich or stainless steel).

In the manufacturing process, the metal is wound outwards in a spiral while the filler materials are wound the same way but in the opposite direction.

This gives the gasket alternating layers of metal and filler, giving it its "spring effect" characteristic and resiliency from the effects of temperature difference across the flange face, and temperature and pressure fluctuations.

Spiral wound gaskets may either have an outer or inner ring, or both. Which respectively centers the gasket between flanges, and protects the sealing element while reducing internal turbulences.

METAL WINDING STRIP FILLER MATERIALS GUIDE RING MATERIALS
Stainless Steel 316L Treated Asbestos Fiber Carbon Steel
Stainless Steel 304 Non-Asbestos Fiber Stainless Steel 304
Stainless Steel 309 P.T.F.E Stainless Steel 316L
Stainless Steel 310 Graphite Stainless Steel 316Ti
Stainless Steel 316Ti Ceramic Stainless Steel 321
Stainless Steel 321 Aluminum Stainless Steel 347
Stainless Steel 347 Stainless Steel 410
Monel 400 Monel 400
Nickel 200 Nickel 200
Inconel 600 Inconel 600
Inconel 625 Incoloy 800
Inconel X750 Inroloy 825
Incoloy 800 Hastalloy B2
Incoloy 825 Hastalloy C276
Hastalloy B2 Titanium
Hastalloy C276 Alloy 20
Titanium
